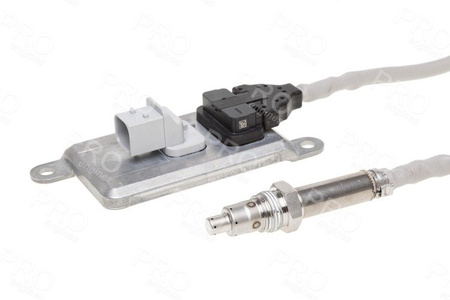

NOX Sensor Continental SCANIA R-2294290
NOX Sensor Continental SCANIA R-2294290
NOX Sensor Continental SCANIA R-2294290
NOX Sensor Continental SCANIA R-2294290
ConditionNew
Warranty12 Months

NOX Sensor Continental SCANIA R-2294290

SizePrice / szt.DiscountAvailability and ShippingBuy with pointsQuantity
Kat.
267,98 € net
Discount
The product is available
The product is availableShipment tomorrow (∞ szt. in stock)
Buy with points
Sum of selected products:
(Discount %)
0
net / 1szt.
/ 1szt.
Express checkout 1-Click(without registration)
14 days for easy returns
Safe shopping
After purchase you will receive pts.

The regeneration process
The highest quality is a priority for us! To get the highest quality product, each sensor is dismantled for the first part. Then it is cleaned, painted and regenerated. Metal probe is replaced with a completely new one. Regeneration is carried out on the original components and software. The entire process is performed by the best specialists and with the utmost care. The device is functional and tested.

Advantages of the NOX Sensor of nitrogen oxides for SCANIA

  • The sensor located in the exhaust system of the vehicle is used to continuously measure the NOx (nitrogen oxides) content in the exhaust gases of cars.
  • The basic advantage of the NOx sensor is the reduction of fuel consumption, and thus - also savings and lower emissions.
  • A sensor that controls the level of nitrogen oxide emissions will save up to 20% of fuel.

Invoice

  • We issue a 23% VAT invoice for each purchased part. EU customers 0% VAT (VAT ID must be active). The gross price applies to consumers.
  • If you have any questions, please contact us.

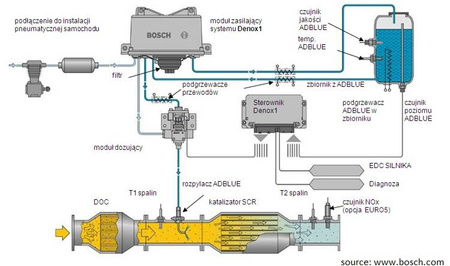

SCR technology
SCR technology consists in converting (reducing) nitrogen oxides into non-toxic nitrogen and water vapor in a catalyst using ammonia as a reducer. In commercial vehicles, a non-toxic, odorless, 32.5% aqueous solution of urea is used. Under the control of the engine management system, the urea solution (NOX), stored in a separate tank, is dosed in the desired amounts into the hot exhaust stream. Under high temperature exhaust gases, the urea solution decomposes to ammonia and carbon dioxide. Ammonia then reacts with nitrogen oxides to form free nitrogen and water vapor.

Denoxtronic Bosch systems have been used since 2004 in trucks equipped with diesel power systems. They add AdBlue to the SCR catalyst to reduce NOx emissions from exhaust gases by up to 85%. As a result, lorries meet the exhaust emission standards from Euro 4 to Euro 6.

Symbol
R-2294290
Producer code
R-2294290
Series
Regenerated
Part number
OE Codes
5WK97400
2064768
2247380
2294290
2296800
PRO engines
PRO-2294290
AMPRO
A1217400
Technical Specifications
Product type
NOx sensor
Voltage [V]
24
Exhaust emission standard
Euro 6
Cable length [mm]
890
Cube color
Gray
Cube shape
Square
Application
Truck type
Trucks
Scania
Installation
Before the catalyst
Transport
Package size [cm]
20 x 11 x 9
Gross weight [kg]
0.5
Box type
Neutral carton
Additional information
Complaint condition
A diagnostic printout with an error is required for a complaint
Terms of warranty
We do not provide warranty for parts installed outside the authorized service.
