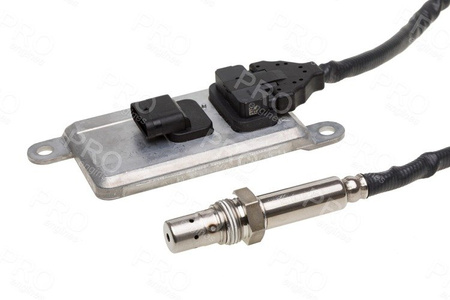

NOX sensor MAN PRO-81154080004

Advantages of the NOX Sensor

• The sensor located in the exhaust system of the vehicle is used to continuously measure the NOx (nitrogen oxides) content in the exhaust gases of cars.

• The basic advantage of the NOx sensor is the reduction of fuel consumption, and thus - also savings and lower emissions.

• A sensor that controls the level of nitrogen oxide emissions will save up to 20% of fuel.

Invoice

• We issue a 23% VAT invoice for each purchased part. EU customers 0% VAT (VAT ID must be active). The gross price applies to consumers.

• If you have any questions, please contact us.

SCR technology

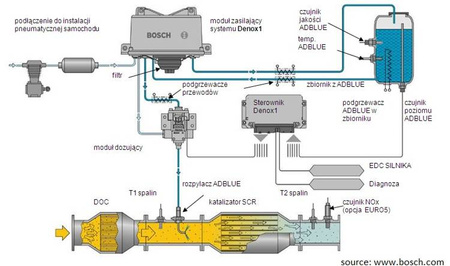

SCR technology consists in converting (reducing) nitrogen oxides into non-toxic nitrogen and water vapor in a catalyst using ammonia as a reducer. In commercial vehicles, a non-toxic, odorless, 32.5% aqueous solution of urea is used. Under the control of the engine management system, the urea solution (NOX), stored in a separate tank, is dosed in the desired amounts into the hot exhaust stream. Under high temperature exhaust gases, the urea solution decomposes to ammonia and carbon dioxide. Ammonia then reacts with nitrogen oxides to form free nitrogen and water vapor.

Denoxtronic Bosch systems have been used since 2004 in trucks equipped with diesel power systems. They add AdBlue to the SCR catalyst to reduce NOx emissions from exhaust gases by up to 85%. As a result, lorries meet the exhaust emission standards from Euro 4 to Euro 6.
